Label:
|
GEBR
ALEXANDER MAINZ |
|
|
Model:
|
(descant double) | |
|
Serial Number:
|
none | |
|
Date of Manufacture:
|
ca. 1930s | |
|
Key(s):
|
Bb/high F | |
|
Valves:
|
5 rotary (one pair tandem), tapered cores, mechanical linkage | |
|
Bore:
|
12.0 mm. | |
|
Bell Flare:
|
gusset (modified detachable) | |
|
Bell Throat:
|
approx. 8 cm. | |
|
Bell Diameter:
|
29.2 cm. | |
|
Base Metal:
|
brass with nickel silver trim | |
|
Finish:
|
lacquer (mostly removed) | |

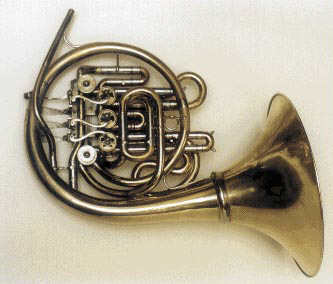

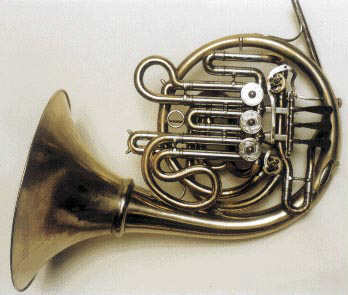

| The main tuning slide is built into the leadpipe taper and is very short. This makes tuning tricky since it is the only adjustment for the high F side. The horn has both a pinky hook and duck's foot for left hand support. The tandem thumb valves have been modified so the horn lies in high F instead of the original Bb. This is simple to reverse by rotating the valve cores 90 degrees. The bell has been cut and fitted with a screw ring. | ||
